RedMax RZT48 Zero-Turn Mower 48″ Fabricated Deck, Kawasaki 23 HP
Original price was: $9,150.00.$7,778.00Current price is: $7,778.00.
The RedMax RZT48 is a zero-turn ride-on mower with a 48-inch fabricated steel deck, powered by a 23 HP Kawasaki V-Twin engine, ideal for homeowners seeking professional-quality lawn results with easy manoeuvring and robust build quality.
Description

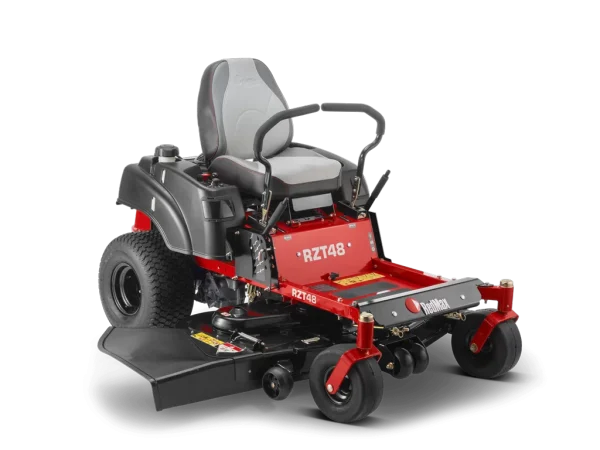

RedMax RZT48 Zero Turn Mower
The RedMax RZT48 is a residential zero turn mower built with commercial-style components.
A 23 HP Kawasaki FR691V V-Twin engine, Hydro-Gear EZT-2200 transmissions and a 48″ fabricated
ClearCut 10 ga steel deck combine to deliver fast, clean cuts across larger blocks season after season.
With a high-back vinyl seat, ergonomic control layout and non-slip foot platform, the RZT48 keeps the operator
comfortable and in control. It’s easy to service, easy to drive and designed for long-term durability.
Key Features
- 23 HP Kawasaki FR691V V-Twin engine with electric start
- 48″ fabricated ClearCut cutting deck made from 10 ga steel
- Hydro-Gear EZT-2200 transmissions for smooth, precise zero-turn control
- Ground speed up to 10 km/h forward, 4.5 km/h reverse
- High-back vinyl seat and ergonomic control panel
- Non-slip, removable foot pan for safe footing and easy deck access
- Cast iron spindle housings for long service life
- Productivity of up to 2.5 acres per hour (at 80% efficiency)
Specifications
| Model | |
|---|---|
| Model | RZT48 |
| Engine | |
| Manufacturer | Kawasaki |
| Model | FR691V |
| Power | 23 HP V-Twin |
| Fuel capacity | 13 L |
| Drive Line | |
| Transmission type | Hydrostatic, EZT-2200 |
| Transmission manufacturer | Hydro-Gear |
| Forward speed (max) | 10 km/h |
| Reverse speed (max) | 4.5 km/h |
| Cutting Deck | |
| Cutting width | 48″ |
| Cutting height range | 1.5″ – 4.0″ |
| Deck construction | Fabricated ClearCut, 10 ga steel |
| Blade spindle type | Cast iron |
| Tyres & Productivity | |
| Front tyres | 11 x 6 – 5 |
| Rear tyres | 18 x 9.5 – 8 |
| Productivity (80% efficiency) | 2.5 acres/hour |
| Comfort & Other | |
| Seat | Vinyl cushion, high-back |
| Warranty | |
| Unit warranty | 3-year consumer |
| Engine / transmission | 3-year engine / 2-year transmission (by respective manufacturers) |
Feature Highlights
Kawasaki FR691V engine
Smooth, quiet Kawasaki V-Twin power with electric start and heavy-duty components designed for long service life.
Zero-turn steering system
Individual hydraulic wheel drive lets you pivot on the spot and manoeuvre easily around trees, garden beds and obstacles.
Rugged frame and casters
A robust tubular frame and heavy-duty casters minimise chassis flex and are built to handle regular use.
Ergonomic control panel
Controls are grouped together within easy reach so starting, engaging the blades and adjusting settings is straightforward.
Anti-slip foot area
The foot platform includes generous non-slip zones to help keep you stable when getting on, off and operating the mower.
Removable foot pan
Lift out the foot pan for quick access to deck belts, pulleys and spindles when cleaning or carrying out maintenance.
Cast iron spindle housings
Heavy-duty cast iron blade housings with ball bearing support are engineered for strength and durability.
Specifications, features and warranty details are based on information from RedMax and may be changed by the
manufacturer without notice. Images are for illustration only and may not show the exact configuration supplied.
