Specifications

• Air Filter: Heavy-duty, canister style air cleaner to extend the service interval for excessive, dirty applications and improved performance.
• Blade(s): (3) Heavy-duty, heat treated blades 1 qty x 20.5″ L-F-CCW and 2 qty x 20.5″ L-F-CW

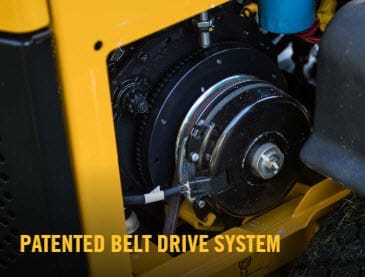

• Blade Drive: V-belt drive from engine with Warner electric CMS 250 enhanced spot brake clutch to all three spindles. Spring tension idler for extended belt life.
• Blade Tip Speed: 18,200 fpm

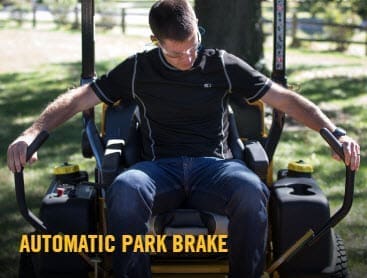

• Brakes: In Service: Hydrostatic dynamic braking. Parking: Automotive-style drum brakes. When steering levers are placed in park position, integral park brakes are automatically engaged.
• Charging System: 12-volt, 40-amp alternator
• Controls: Hand-operated throttle, ignition switch, electric mower clutch, Integrated parking brakes
• Construction: Mainframe is 1.5″ x 3.0″ x .187″ (38 mm x 76.2 mm x 4.7 mm) rectangular steel tubing. Drive motors mounted to 7 ga (4.5 mm) welded steel mounting plate, with a 1/4″ (6.4 mm) steel doubler plate. Front caster wheels mounted with roller bearings on each wheel. Front caster forks are .5″ (12.7 mm) steel.

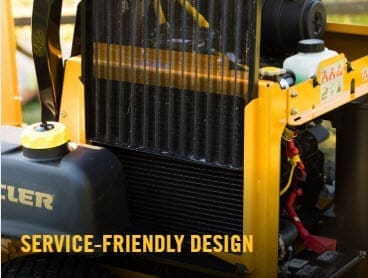

• Cooling: Liquid cooled. Direct-driven, mechanical cooling fan
• Caster Tyres: 13 x 6.5 – 6, rib tread
• Cup Holder: Two cup holders moulded into the left side fuel tank. Accommodates nearly any cup size.
• Cutting Height(s): Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in .25” increments from 1.0” to 5.5” (25.4 mm to 139.7 mm, 6 mm increments)
• Cutting Widths: 60” cut

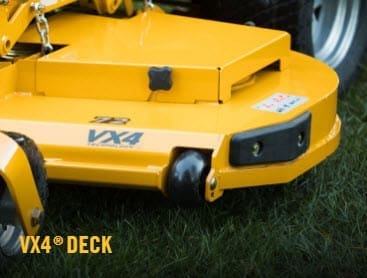

• Deck Construction: Welded steel. Solid 1.5″ x .375″ (38 mm x 9.5 mm) steel bars reinforce impact areas on trim edges. Reinforcements welded onto spindle mount areas. Steel deck housing is 5.5″ (139.7 mm) deep to provide room for high-capacity mowing.
• Deck System: Rear-Discharge: 60″ cut deck. Free-floating deck using three blades with centre blade to the front. Mower deck is suspended at the corners. Includes deck-mounted rollers to improve flotation in rolling and uneven terrain.
• Deck Lift: Foot-operated deck height adjustment.
• Drive Cooling: Large capacity cooler with 8″ (203.2 mm) fan for extended hydraulic life.
• Drive Filter: 40 micron in tank
• Drive System: Dual hydrostatic. Tandem pumps power two direct-drive wheel motors. Hydrostatic system operates on 20W50 motor oil.
• Engine: Shibaura
• HP: 25.0 hp (1,131 cc)
• Flex Forks: Standard
• Fuel: Diesel
• Fuel Capacity: 54.5 L (14.4 US gal)
• Governor: Mechanical
• Ground Speed – Forward: Infinitely variable 0-19.3 kph (0 – 12 mph)
• Ground Speed – Reverse: 0-11 kph (0-7 mph)
• Height: 51.00″ (1300 mm) With ROPS folded down / 69″ (1750 mm) With ROPS up.
• Hour Meter: Standard
• Hydraulic Lines: Stainless-steel, high pressure lines with Parker Seal-Lok™ O-Ring face-seal fittings.
• Ignition: Compression
• Indicators: Hour meter, high temperature light, oil pressure light, charge light, glow plug light, audible alarm for high engine temperature and low oil pressure, electronic fuel gauge for each tank.
• Injection System: Bosch in-line
• Overall Length: 86.8″ (2205 mm)
• Optional Accessories: Optional accessories available for purchase separately include: • Hydraulic Deck Lift Kit: HA110156 • Kit Light: 54″ / 60″ / 72″: HA110153 • Steering Lever Extension Kit: HA353961 – Steering levers can be adjusted in several ways to make your mowing experience as comfortable as possible. • Flex Forks™: HA603167 [2 forks] • Beacon Kit: HA110467 • Flasher Kit: HA110469 • Hitch Kit: HA109920 • Semi-Pneumatic tyre 13 x 6.5 – 6: HA789537
• Oil Filter: Remote-mounted, spin-on engine oil filter (oil pan and filter can be drained into a single drain container for easy maintenance and minimal clean up) 5.1 US qt (4.8 Litre) oil capacity
• Pumps: Tandem variable displacement, axial-piston type. Each pump powers one drive-wheel motor. Hydro-Gear 21cc pump.
• Pump Drive: Pumps are driven directly from the crankshaft with a micro-V-belt
• Please Note: Specifications subject to change without notice.
• ROPS: Standard foldable ROPS with seatbelt.
• Safety Features: Standard foldable ROPS with seat belt. Operator presence system connected to seat, deck clutch and park brake switches. Stabiliser wheels at rear of lawn mower. Discharge chute deflector.

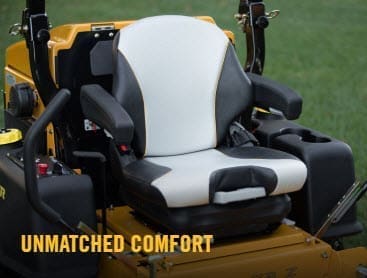

• Seat: Seat suspension, moulded-vinyl, adjustable seat with armrests. Fore and aft adjustment.
• Seat Suspension: Standard
• Spindles: Machined ductile iron casting with steel shafts and sealed ball bearings.

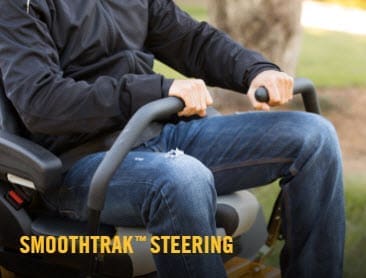

• Steering: SmoothTrak™ twin-lever steering with patented automatic park brake system provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls.
• Starter: 12-volt (see engine manufacturers specifications)
• Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
• Type: Liquid cooled, inline three cylinder, naturally aspirated industrial diesel engine.
• Tyres – Drive: 24 x 12 – 12, turf tread
• Warranty: Hustler Z® Diesel: Residential / Farm Use Limited Warranty (Starting with serial number 1110xxxx) Entire Product: 5 years or 500 hours – whichever come first***- to the original purchaser only. Pumps & Motors only: 5 years or 500 hours – whichever come first – to the original purchaser only. Engine Only: Shibaura engine 3 years or 2000 hours – whichever comes first – to the original purchaser only. ***Lifetime against tractor frame breakage and deck front edge being bent into blades – to the original purchaser only. Warranty: Hustler Z® Diesel: Commercial Use Limited Warranty (Starting with serial number 1110xxxx) Entire Product: 2 years***- to the original purchaser only. Pumps & Motor only: 2 years – to the original purchaser only. Engine Only: Shibaura engine 3 years or 2000 hours – whichever comes first – to the original purchaser only. ***Lifetime against tractor frame breakage and deck front edge being bent into blades – to the original purchaser only. Warranty: Hustler Z® Diesel: Rental Application Warranty 90 days (no lifetime warranties). Please Note: For further details on our warranty terms and conditions including all limitations and exclusions please refer to the warranty section on our web site or contact our friendly sales team.
• Weight: 768 kg (1695 lbs)
• Width: 66″ (1676 mm)
• Width of Cut: 59.10″ (1500 mm)
• Width (tyre-to-tyre): 56″ (1420 mm)

Disclosure: We make every effort to keep these specifications up to date. In some cases when the current model is replaced, our supplier will send this without our knowledge. This will mean we might have a slightly different model than specified here in stock. All the key features will be the same, however there might be a few minor changes so if there is something critical to you purchase please advise otherwise we will supply the latest model.
