Gravely 00669300 Hydraulic Oil Filter – Pro-Master & Compact-Pro
$49.00
Genuine Gravely hydraulic oil filter (#00669300) for Pro-Master, Compact-Pro, PM-series and ZT XLP zero-turn mowers. OEM media traps debris, keeps pumps and wheel motors running cool, and protects your warranty.
Description

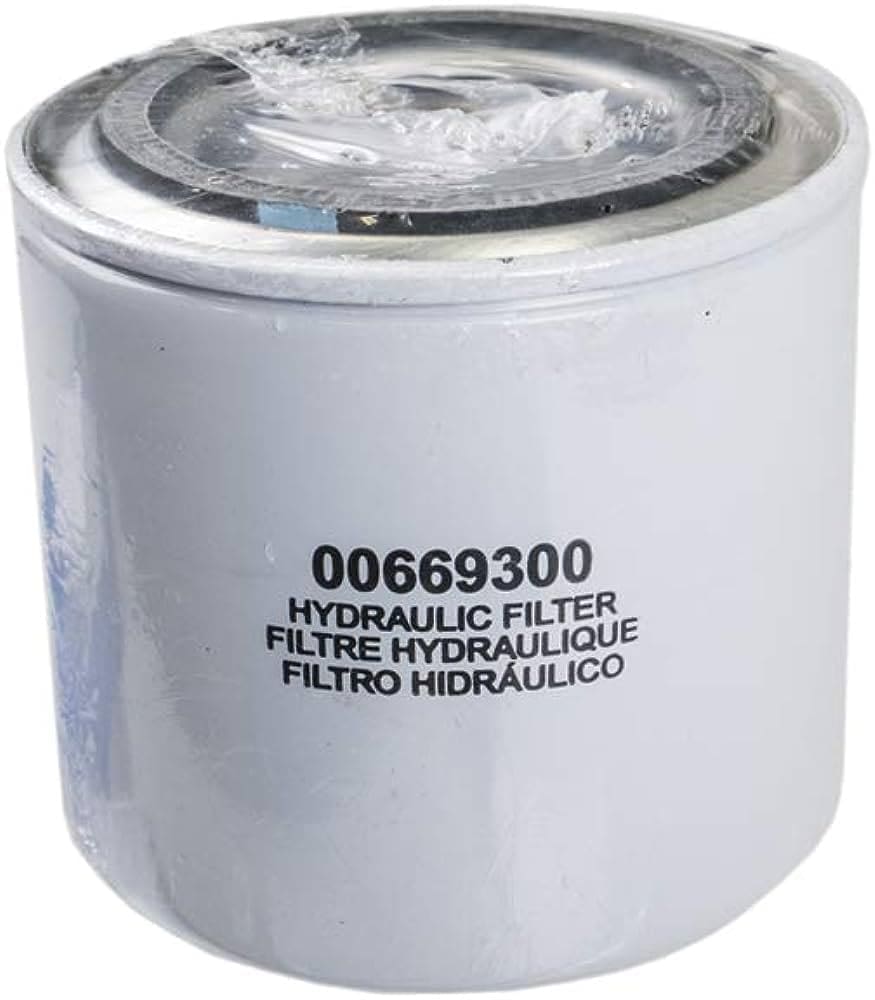

Genuine Gravely 00669300 Hydraulic / Transmission Oil Filter
Protect your hydro-drive system with the 00669300 OEM oil filter.
Special high-flow media captures fine debris without starving pumps or wheel
motors, keeping your Gravely zero-turn running strong and cool in tough
conditions.
Why Choose OEM?
- Perfect fit & seal – no leaks, no cross-threads.
- Correct bypass rating – maintains pressure at full RPM.
- High-capacity media – extends service interval and component life.
- Warranty safe – factory-approved part for Gravely hydraulics.
Compatible Gravely Models – click to expand
- PM 320
• 990021 (002000 +) – 27 hp Kohler
• 990023 (002000–0024999; 002500 +) – 27 hp Kawasaki - Pro-Master 320 / 3084
• 990024 (000101 +) – PM 320
• 990025 (000101 +) – PM 3084 - PM Stand-on Series
• 991022 PM34M (000500–002999; 003000 +)
• 991023 PM44M (000500 +)
• 991043 PM44M (000101–002999)
• 991043 PM34M (003000 +) - PM “XDZ” & Mechanical-Lift Riders
• 991026 PM144M XDZ 21 hp Kawasaki (000101 +)
• 991027 PM148M XDZ 21 hp Kawasaki (000101 +)
• 991028 PM152M XDZ 23 hp Kawasaki (000101 +)
• 991029 PM148M 19 hp Kawasaki (000101 +)
• 991030 PM152M 21 hp Kawasaki (000101 +)
• 991031 PM152M XDZ 23 hp Kohler (000101 +)
• 991032 PM144M 19 hp Kawasaki (000500 +)
• 991042 PM160M 25 hp Kawasaki (000101 +) - Compact-Pro 34 (Side & Rear Discharge)
• 991071 (000101 +)
• 991088 (000101–019999; 020000–040999; 041000–049999; 050000–059999; 060000 +)
• 991105 CARB (020000–040999; 041000–049999; 050000–059999; 060000 +)
• 991301 Rear Discharge (000101–002999; 003000–019999; 020000 +)
• 991302 Side Discharge (000101–002999; 003000–019999; 020000 +) - ZT XLP Residential
• 992140 ZT 2044 XLP 20 hp Kohler (002000 +)
• 992143 ZT 2348 XLP 23 hp Kohler (002000 +) - Walk-Behind & Floating-Deck Units
• 994100 1948FL 19 hp Kawasaki (000101–000500)
• 994102 2352FX 23 hp Kawasaki (000101 +)
• 994103 2352FL 23 hp Kawasaki (000101–000500)
• 994104 1934FX 19 hp Kawasaki (000101–000500)
Match your model and serial range to ensure correct fit.
Service Interval
Replace every 250 hours or once per season (whichever comes first), and
whenever hydraulic oil is changed.
Quick-Change Tips
- Warm machine 3-5 minutes; shut off engine and relieve hydraulic pressure.
- Clean around filter base; place a drain pan under hydro tank.
- Spin off old filter, wipe base, lightly oil gasket on 00669300.
- Screw on by hand until gasket contacts base, then tighten ¾ turn more.
- Refill system to spec, purge air per manual, check for leaks.
Ready for smooth hydro performance? Add the 00669300 filter to your cart – enjoy fast, free Australia-wide shipping from Acacia Mower Centre.
