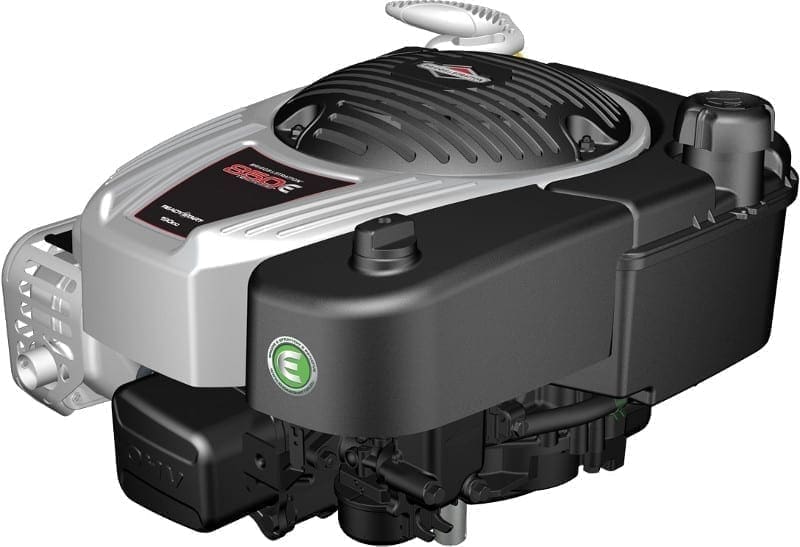

850 Series™ I/C®
The 850 SERIES™ engine family utilizes Over Head Valve (OHV) technology, which runs cooler and cleaner – delivering more power, longer engine life and improved fuel economy.This engine has a long shaft engine is suitable for repowering most masport lawn mowers with a 25mm shaft. If you would like use to fit this engine a base cost with no other work needed is $50.00 plus oil.
| Engine Type | Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve) |
| Model Number | 122Q02 |
| Gross Torque (Nm) @ 3’060 rpm | 11.2* |
| Displacement (cc) | 190 |
| Cylinder | Cast Iron Sleeve |
| Bore (mm) | 68.3 |
| Stroke (mm) | 51.8 |
| Fuel Tank Capacity (l) | 1.1 |
| Oil Capacity (l) | 0.7 |
| Dry Weight (kg) | 11.2 |
| Dimensions Length (mm) | 397 |
| Dimensions Width (mm) | 11.2 |
| Dimensions Height (mm) | 238 |
